Overview – RFID HDX (Half Duplex) Electronic Ear Tags
Electronic identification animal ear tags approved for livestock identification are passive tags. They have no bat-tery or power source of their own. Each tag contains a transponder that is activated when introduced into an electromagnetic field produced by an RFID reader. When activated, it will send the transponder's unique chip number to the reader which in turn sends it to the software contained in a computer, electronic scale head or PDA, etc. The unique transponder chip number contained in each ear tag is also printed on the outside of the tag.
DWB-002YH Series Animal Ear Tag is an ear tag specially designed for the management of the animal raising and butchering. It meets the international standard of of ISO11784/11785 HDX. It is designed and produced on the imported high-level Microchips and it can be served to read and write, and also has a unique design of data security. In the animal raising and butchering, it can trace the animal’s identification by using our company’s readers together.
Certificate: International Committee for Animal Recording(ICAR)
Specifications –134.2 kHz Animal Electronic Ear tags
| RFID Compatibility |
ISO11784/85 compliant |
| Duplex Mode |
HDX |
| Operating Frequency |
134.2kHz |
| Microchip |
HDX Chip |
| Height |
13.3mm ± 0.1mm |
| Diameter |
30.0mm ± 0.1mm |
| Weight |
10 grams |
| Available Colours |
Yellow White or any other colours |
| Material |
TPU(Thermoplastic Polyurethane) |
| Pin |
Metal or Nylon |
| Max Tension |
350N |
| Anti-Collision Standard |
IEC 68-2-27 |
| Shaking Standard |
IEC 68-2-6 |
| Chemical resistance |
With IP67 standards, Waterproof, anti-ultraviolet, anti-soaking |
| Tamperproof |
Ensures security in livestock management programs |
| Reading Distance |
Reading distance varies greatly per application due to reader quality & environmental factors |
| Working Temperature |
Operating at -30°C to 85 °C |
| Store Temperature |
Storage at -30°C to 65°C |
| Working Humidity |
5% to 90% no frost |
| Period of Validity |
>5 years |
Product Feature - RFID HDX Electronic Ear Tags Sets
- 100% performance guaranteed, Designed to protect technology inside.
- Guaranteed to last the life of the animal.
- International Committee for Animal Recording, the worldwide organization of animal recording and productivity evaluation.
- Conforms to standards established by the International Organization for Standardization. The world's largest developer of standards.

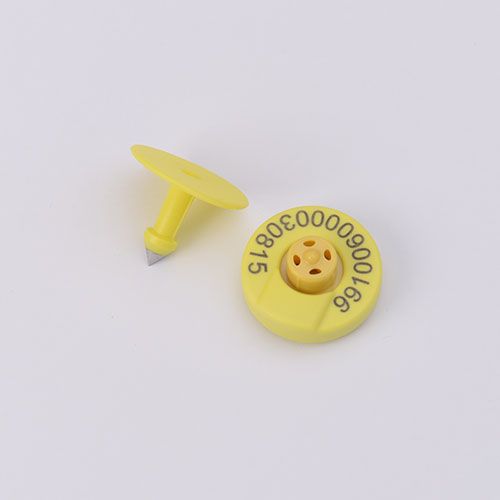

- ID numbers and other laser printings as you required A male part and a female part with a microchip inside Patented application eliminates ripped & torn ears
Application Usage –134.2 kHz Livestock ID Tags
Can be used in the management of breeding stock dairy stock, fatstock and animal slaughter to trace individual identification.
Provide the cattle rfid ear tags, swine rfid ear tags, goat rfid ear tags, sheep rfid ear tags, deer rfid ear tags, any livestock tags!
