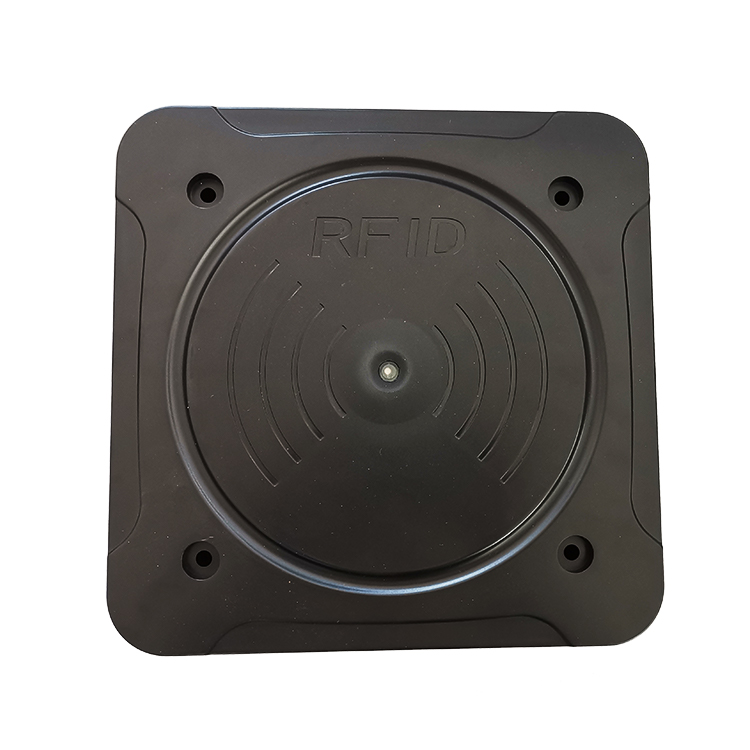

Middle Distance Tag Reader

READER-M-DIS is a middle distance ISO11784/ISO11785 tag reader produced by Doowa. The reading distance can be more than 35cm if using Doowa’s ear tag. It supports RS232& RS485 output.



Specification：

Model No.： READER-M-DIS

Size：  265 L*265 W*35H mm

Work Frequency：  134.2KHz

International Standard：  ISO11784  FDX-B

Technical Parameters:

Input voltage：            DC 9~12V

Work current (standard antenna)   150mA

Reading distance：                 35cm (Doowa Ear Tag)

Indicator light：            Red and Blue

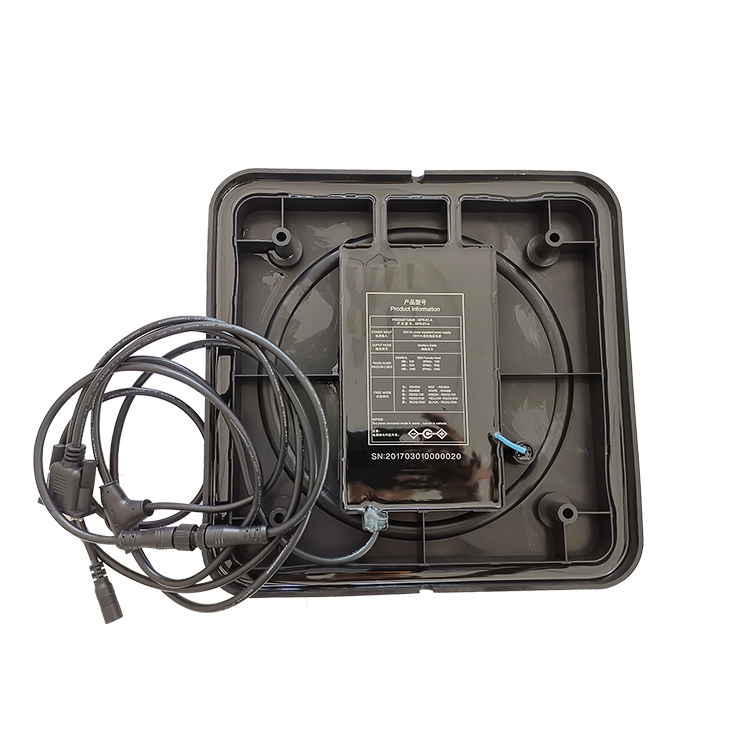

Connection Instruction

Red：  VCC

Black： GND

Blue： RS485 A

Green： RS485 B

White： GND

Yellow： RS232-TXD

Grey： RS232-RXD

Brown： Reserve

Communication Protocol

• Interface:           RS232/RS485
• Baud rate:                 9600
• Start bit:                     1
• Data bit:                     8
• Parity bit:               None
• Stop bit:                     1



Output format

999000123456789\r\n
