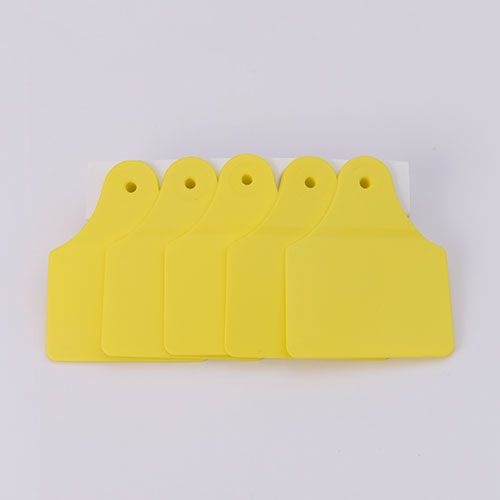

HDX Ear Tag with Visual Pad

+

134.2kHz HDX (Half Duplex) Visual Ear Tag ISO11784/11785 HDX Compliant ear tags,HITAG, EM Series Chip Two-times injection molding process and good Waterproof and anti-collision performance.

  • Model
    DWB-003YH

Overview – HDX (Half Duplex) Visual Ear Tag

This new innovative tag is an RFID tag combined with a specially designed visual tag, to give visual and electronic identification wherever an animal is being handled. The RFID Visual tag is designed with the key elements of high retention, ease of application and readability (both electronic and visual) paramount.

DWB-902 Animal RFID Visual Ear Tag is an ear tag specially designed for the management of the animal raising and butchering. It meets the international standard of ISO11784/5 HDX. It is designed and produced on the imported high-level Microchips and it can be served to read and write, and also has a unique design of data security. We can add letters, numbers or 2D codes by laser printing for visual purpose. In the animal raising and butchering, it can trace the animals identification by using  DWC-180 Handheld Reader or DWC-280 Series Stick Reader together.

Certificate: International Committee for Animal Recording(ICAR)

Specifications –134.2 kHz ISO11784/11785 HDX Visual Livestock ID Tag

RFID Compatibility ISO11784/85 compliant
Duplex Mode HDX
Operating Frequency 134.2kHz
Microchip HITAG, EM Series Chip
Height 71mm ± 1mm
Width 58mm ± 1mm
Weight 9.8 g±0.2g(Female) 3.5g±0.1g(Male)
Available Colours Yellow or any other colour
Material TPU(Thermoplastic Polyurethane)
Max Tension 350N
Anti-Collision Standard IEC 68-2-27
Shaking Standard IEC 68-2-6
Chemical resistance With IP67 standards, Waterproof, anti-ultraviolet, anti-soaking
Tamperproof Ensures security in livestock management programs
Reading Distance Reading distance varies greatly per application due to reader quality & environmental factors
Working Temperature Operating at -30°C to 85 °C
Store Temperature Storage at -30°C to 65°C
Working Humidity 5% to 90% no frost
Period of Validity >7 years



Product Feature - 134.2 kHz ISO11784/11785 HDX Tracking RFID Ear Tag

  • 100% performance guaranteed, Designed to protect technology inside.
  • Guaranteed to last the life of the animal.
  • International Committee for Animal Recording, the worldwide organization of animal recording and productivity evaluation.
  • Conforms to standards established by the International Organization for Standardization. The world's largest developer of standards.
  • ID numbers and other laser printings as you required

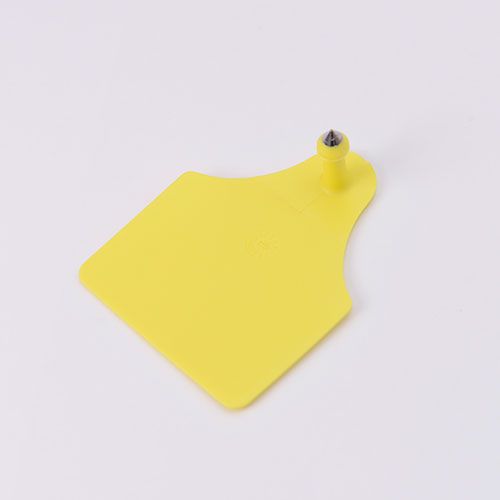

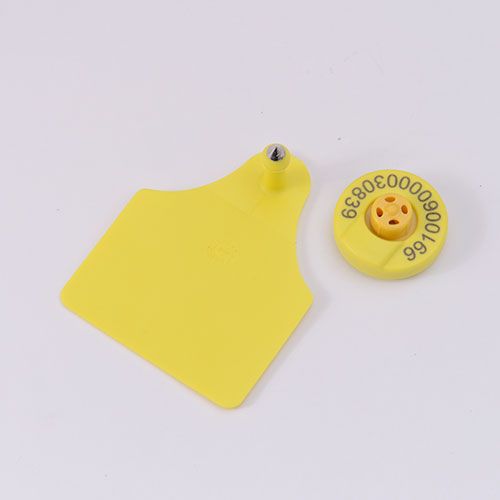

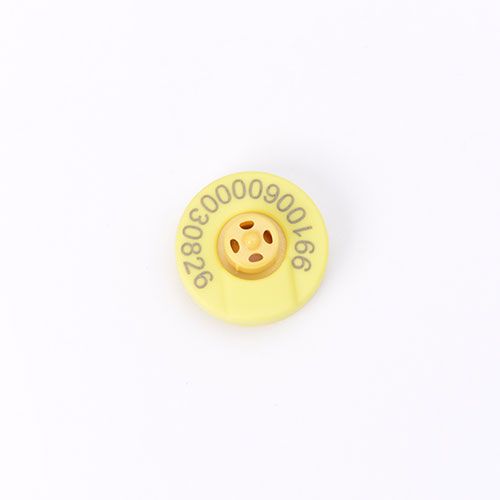

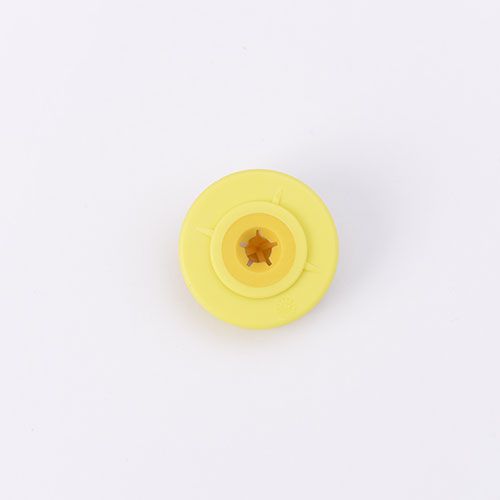

  • A male part and a female part with a microchip inside
  • ICAR approved ID numbers in electronic file
  • Patented application eliminates ripped & torn ears
  • Choose your color. Choose your printing content.Electronic File for ID.
  • Two-times injection molding process and good Waterproof and anti-collision performance.

Application Usage –134.2 kHz ISO11784/11785 HDX Visual Electronic Ear Tag

Can be used in the management of breeding stock dairy stock, fatstock and animal slaughter to trace individual identification.
Provide the cattle rfid ear tags, swine rfid ear tags, goat rfid ear tags, sheep rfid ear tags, deer rfid ear tags, any livestock tags!
