1.4x8mm ISO FDX-B Microchip Syringe
1.4x8mm ISO FDX-B Animal Microchip Syringe,Animal Microchip Implant. 134.2kHz 1.4x8mm RFID Microchip Syringe with ISO FDX-B Microchip ISO11784/11785 FDX-B and ISO14223 Compliant transponder,Hitag-µ Chip Bio-compatible glass encapsulation,Processed in EO gas,Proof-immigration coating,Senior medical dialysis paper.
- ModelDWA-007
-
Instructions for animal identification transponder
pdf | 900.86 KB | 7856 hits

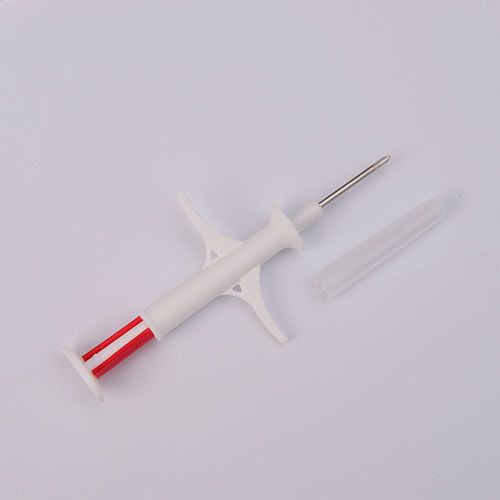

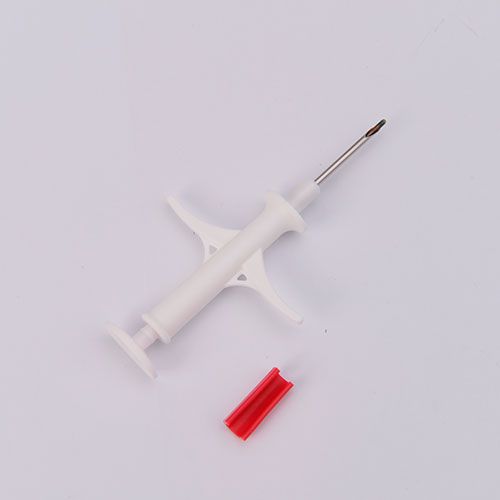

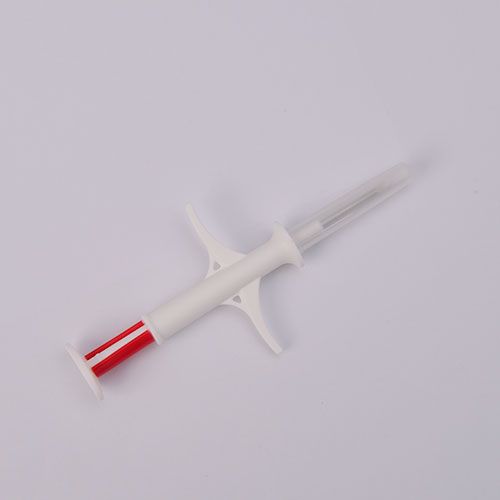

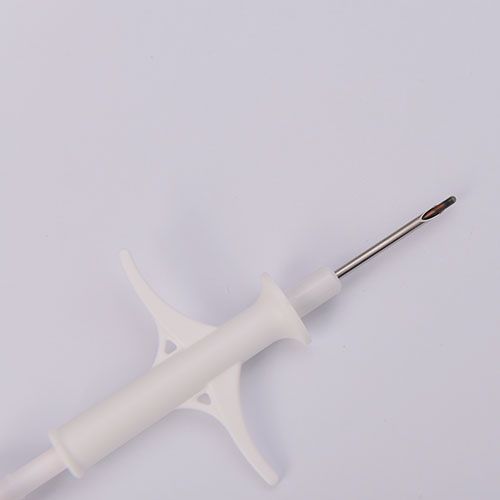

Overview - 1.4x8mm ISO FDX-B Animal Microchip Implant
In order to meet requirement of markets,we designed a new product of 1.4MM*8MM subsize microchip syringe. Animal id chip is safer in animal's body than the big one. Subsize needle is easier to inject and more suitable for samll pets and lab animal.
Small Syringed Electronic Tag is a kind of tag specially designed for samll pets,livestock,and animal. It is syringed into animal's body by certain syringes. It includes the single-use syringe and the electronic tag, six bar tags that meet the IS011784/11785 standard. It uses EO to sanitize and has a five year period of validity.
Specifications - Single-use health Syringe with an RFID Microchip, 1.4x8mm animal identification chip,134.2kHz Bioglass
| Frequency | 134.2kHz |
| Chip Standard | ISO11784/11785 FDX-B and ISO14223 Compliant transponder |
| Chip type | Hitag-µ |
| BIO Glass | HID BIO GLASS 6B3290 |
| ChipSize | Diameter: 1.4 mm ± 0.1 mm
Length: 8.0 mm ± 0.5mm
|
| Injector Size | Width: 50 mm ± 1 mm
Length: 108 mm ± 2mm
|
| Chip Material | Bioglass encapsulation with a proof-immigration coating |
| Injector Material | Polypropylene (PP) |
| Disinfection | EO gas ,Sealed and sterilized with a shelf life of 10 years
Waterproof according to IP 68
|
| Chemical Resistance | Read-only or one time programmable or read-write reprogrammable |
| Data | Storage range:-40°C to + 70°C |
| Temperature | Operating range:-40°C to 70 °C |
| LOT | 5 Years |
Product Feature - 1.4x8mm rfid microchip Syringe with ISO FDX-B Microchip, Animal ID ISO Compliant Transponder
| Tamperproof | Ensures security in livestock management programs. |
| Durable | Guaranteed to last the life of the animal.
Designed to protect technology inside.
|
| Dependable | 100% performance guaranteed. |
| ICAR Approved | International Committee for Animal Recording, the worldwide organization of animal recording and productivity evaluation. |
| ISO Compliant | Conforms to standards established by the International Organization for Standardization. The world's largest developer of standards. |

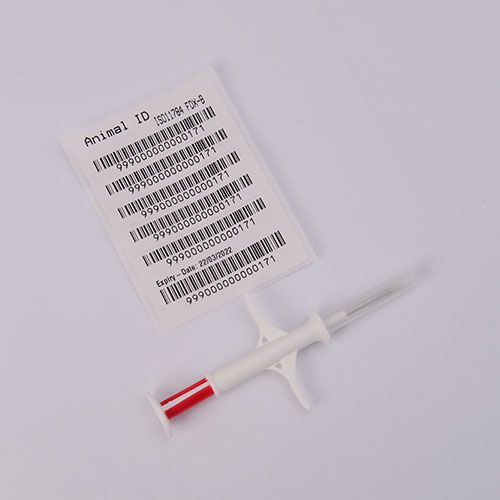

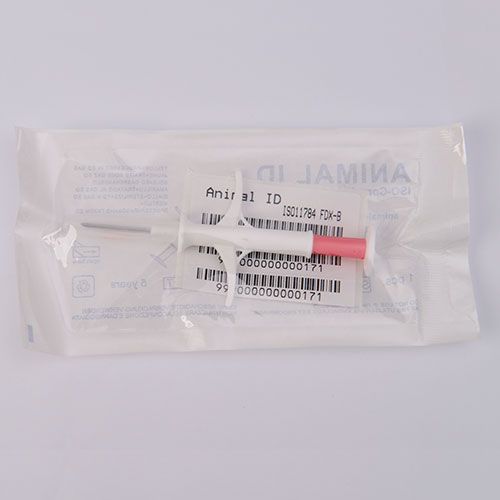

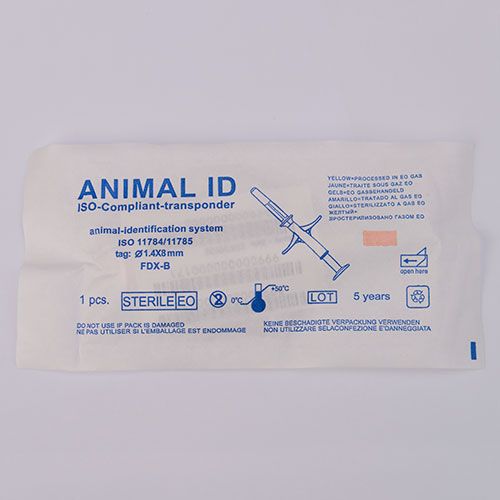

| Components | One set contains a syringe body, a needle, a microchip, six bar-code stickers, a printed pouch. |
| Bio-Technology | Microchip won’t migrate after implanted as Parylene-coated technology enables the microchip grow together with the animal’s hypoderm |
| Electronic File | ICAR approved ID numbers in electronic file.
Easy management in PC or PDA.
|
| Reading distance | Reading distance varies greatly per application due to reader quality & environmental factors. |
| Recommendation | DWC-180 and DWC-280 reader can read ISO compliant chips and transfer data to PC via Bluetooth or USB. DWC-580 reads chip and barcode. |
Particularly suitable for Small Pet management, Small livestock & poultry management, Small Wild animal management
