Overview - Replacement 1.4x8mm animal microchip Needle
Replacement needle with microchip is a kind of tag specially designed for pets,livestock,and animal. It is syringed into animal's body by implanter gun. It includes the disposable needle and the electronic tag, two barcodes that meet the IS011784/11785 standard.
It uses the microchips of the highest technology in the world and it can be served to read and write, and also has a unique design of data security. In the animal identification management, it can trace the animal’s identification by using ISO readers together.
It uses EO to sanitize and has a ten years period of validity.
Specifications -Replacement needle with animal microchip,134.2kHz Bioglass
| Frequency |
134.2kHz |
| Chip Standard |
ISO11784/11785 FDX-B Compliant microchip |
| Chip type |
HitagS-256,EM4305 |
| Bio Glass |
HID(Sokymat) BIO GLASS 8625 |
| ChipSize |
Diameter: 1.4 mm ± 0.1 mm
Length: 8.0 mm ± 0.4mm |
| Chip Material |
Bioglass encapsulation with a proof-immigration coating |
| Injector Material |
Polypropylene (PP) |
| Applicator Colour |
Blue |
| Applicator Weight |
46±1g |
| Applicator Length |
109*76mm |
| Applicator Thickness |
19mm |
| Applicator Material |
ABS |
| Disinfection |
EO gas ,Sealed and sterilized with a shelf life of 10 years |
| Protection Standard |
Waterproof according to IP 67 |
| Chemical Resistance |
Read-only or one time programmable or read-write reprogrammable |
| Storage Temperature |
Storage range: -20°C to + 50°C (up to 1000Hours) |
| Operating Temperature |
Operating range: 0°C to 55 °C |
| LOT |
5 Years |
Product feature - Replacement needle with microchip,134.2kHz Bioglass,Animal ID ISO Compliant Transponder
| Tamperproof |
Ensures security in livestock management programs. |
| Durable |
Guaranteed to last the life of the animal.
Designed to protect technology inside. |
| Dependable |
100% performance guaranteed. |
| ICAR Approved |
International Committee for Animal Recording, the worldwide organization of animal recording and productivity evaluation. |
| ISO Compliant |
Conforms to standards established by the International Organization for Standardization. The world's largest developer of standards. |
| Components |

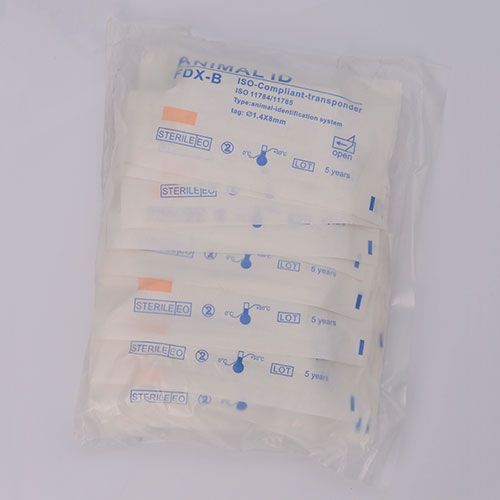

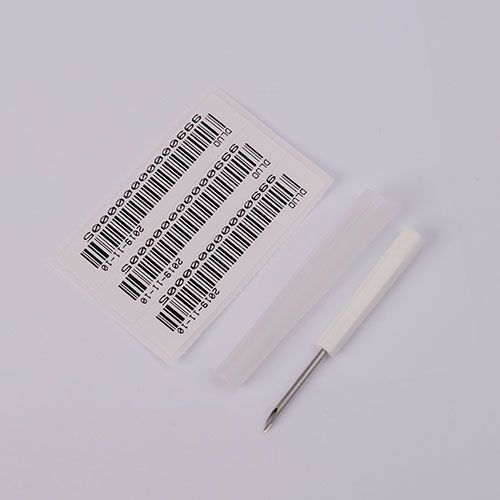

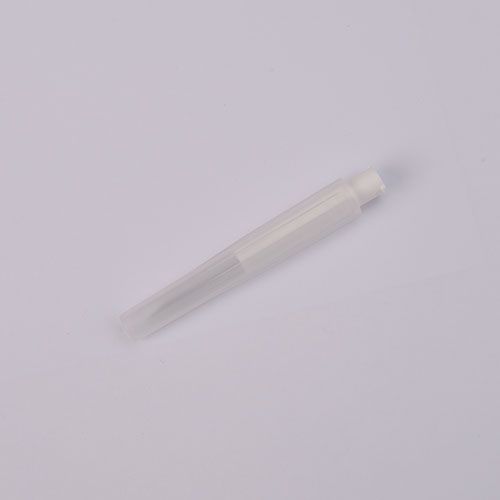

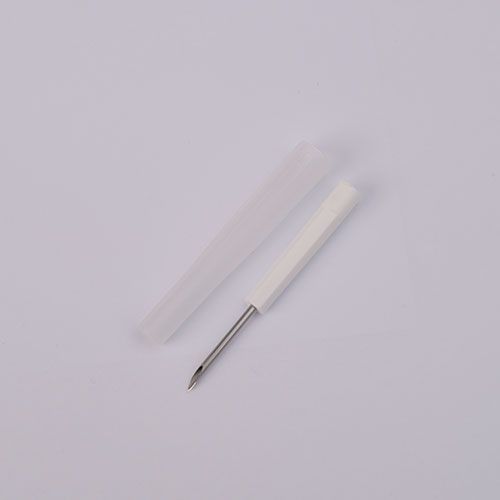

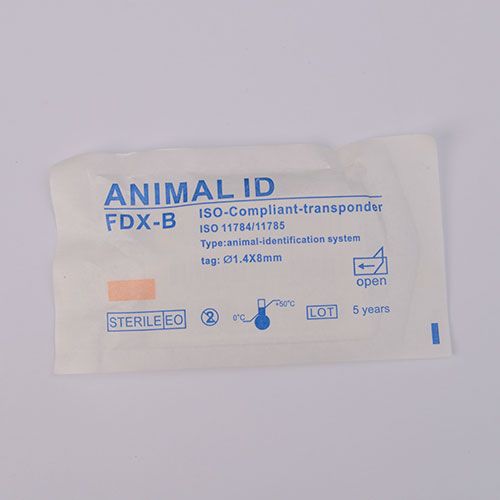

One set contains one Reusable Gun-applicator, one Needle with Needle-holder and Cap, one Microchip, two or three Bar-code Stickers and one printed Pouch. |
| Bio-Technology |
Microchip won’t migrate after implanted as Parylene-coated technology enables the microchip grow together with the animal’s hypoderm |
| Electronic File |
ICAR approved ID numbers in electronic file.
Easy management in PC or PDA. |
| Reading distance |
Reading distance varies greatly per application due to reader quality & environmental factors. |
| Recommendation |
DW(A)R152 and DW(A)R152st reader can read ISO compliant chips and transfer data to PC via Bluetooth or USB. DW(A)R152i2 reads chip and barcode. |
Particularly suitable for Pet management, livestock & poultry management, Wild animal management
