Microchip Scanner & Reader

FDX-B,HDX and ID64 Handheld RFID Reader/Scanner(RFID ID and barcode)

Ask about this product
− +

FDX-B,HDX and ID64 Handheld RFID Microchip Reader / RFID Microchip  Scanner (RFID ID and barcode). 134.2&125kHz Read both RFID microchip ID and the barcode ISO11784/85 FDX-B and ID64 ARM (STM32),EEPROM,storage 6000 items CE&ISO approved,USB2.0.SDK.Spanish,Portuguese,English.Software on PC and PDA,One year guarantee

  • Model
    DWC-580

Overview - 2 in 1 Function RFID Microchip Scanner, Read both RFID ID and barcode

DWC-580 Series RFID Reader is a new generation animal ID reader. solely designed and manufactured by DooWa Technology Co.,Ltd. It can read both RFID microchip ID and the barcode. It is designed to fit the animal identification market. Powerful functions with very competitive price, beautiful and artistic appearance, small and portable, unique three button design bring the user the most convenience in operating.

When a RFID microchip or a barcode is read, DWC-580 reader will collect and display the ID information and reading time on its screen. It supports data storage and can transfer the data automatically by USB communication. DWC-580 reader can support all the RFID microchips that comply with ISO11784 FDX-B standard.

Specifications - 2 in 1 Function RFID Microchip Scanner, Read both RFID ID and barcode

CPU ARM (STM32)
Tag Compatibility 11784/11785 FDX-B ,HDX and ID64
Work Frequency 134.2kHz&125kHz
Data memory EEPROM(storage capability about 6000 items)
Advantage 1 Support barcode reading
Advantage 2 Support chip reading in needle
Certificate CE&ISO Certificate
Height 22cm
Colour Welcome OEM&ODM
Communication USB2.0,Bluetooth2.0
Screen 128 * 32 OLED( Wikipedia reference)
Beep Yes
Clock Yes
Battery Lithium battery
Keyboard 3 keys
Indicator Light Two(green&red)
Language English, Spanish, Portuguese, French, German, Danish, Chinese
Reading distance ear tag: at least 20cm for FDX-B chips, microchip: 8.5cm
Continuous working 12 Hours
Standby Time 7 days
Consecutive Working 12 hours
Waterproof standard IP65
Working Temperature Operating at -35°C to 50°C
Store Temperature Storage at -35°C to 65°C
Working Humidity 5% to 90% no frost

Rugged, dust-proof and water resistant construction is designed to perform reliably in harsh conditions

Dependable 100% performance guaranteed
Guarantee 1 year
SO Compliant Conforms to standards established by the International Organization for Standardization. The world's largest developer of standards.

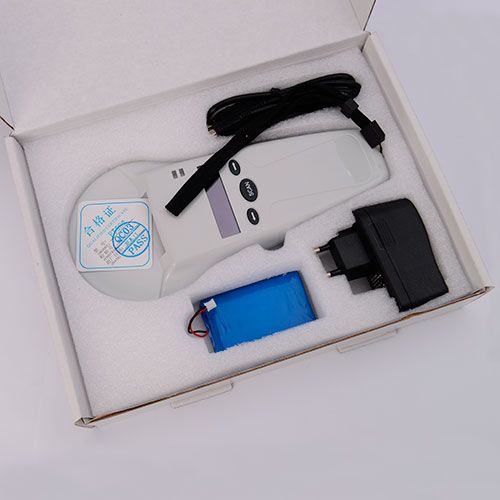

Components Portable suitcase

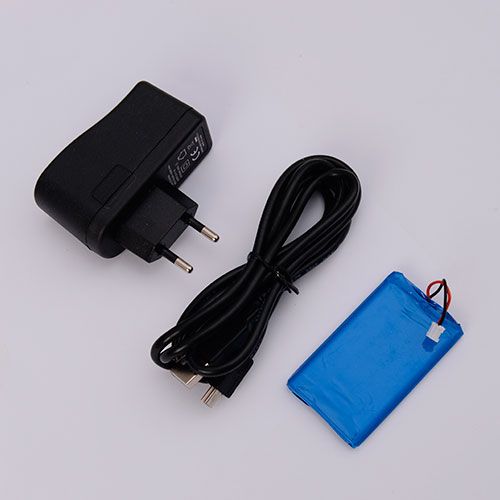

Optional Components Rechargeable battery and Recharger
Barcode identification range Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar



RFID Microchip Scanner Product Feature

  • Reads ISO 11784/11785, FDX-B, ID64 ID tags, HDX
  • OLED screen display (OLED screens are designed to the requirements of field use especially under strong sunlight exposure data to read the screen, minus 20 degrees Celsius.
  • Take rechargeable Lithium battery, allowing a full days work without a battery change
  • Rugged design with waterproof reading end
  • USB communication protol
  • Ergonomic design,long read reange up to 23cm
  • RFID reader functions of reading, storing, displaying and transmitting via USB

Application Usage – RFID Microchip Scanner, Read RFID ID

Pet management, livestock & poultry management, Wild animal management
